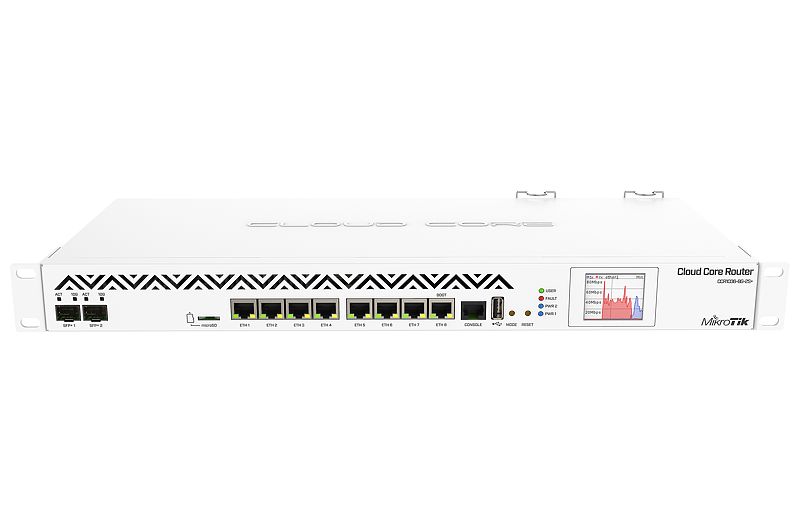

CCR1036-8G-2S+ - Ethernet WAN - Gigabit Ethernet - White
Mikrotik CCR1036-8G-2S+ Wired Router Gigabit Ethernet White
The CCR1036-8G-2S+ is a high performance networking router with eight Gigabit ports, two SFP+ ports for 10G connectivity and dual power supplies for redundancy. Powered by a 36 core CPU, this router is able to perform the most complicated routing and management tasks, for managing large networks with high bandwidth requirements.
Each of it’s ports is directly connected to the Tilera networking CPU, with no ports sharing any bandwidth, guaranteeing the best performance and highest reliability. The CPU supports IPsec hardware accelerated encryption, so you can use it also as a high performance VPN gateway to ensure the best encryption between important locations, without sacrificing connection speed.
The M.2 slot allows to install a high speed SSD disk, for using a local user database, proxy storage or for other features. Two versions are available, depending on the required RAM amount: 4 GB for CCR1036-8G-2S+ and 8 GB for CCR1036-8G-2S+EM.

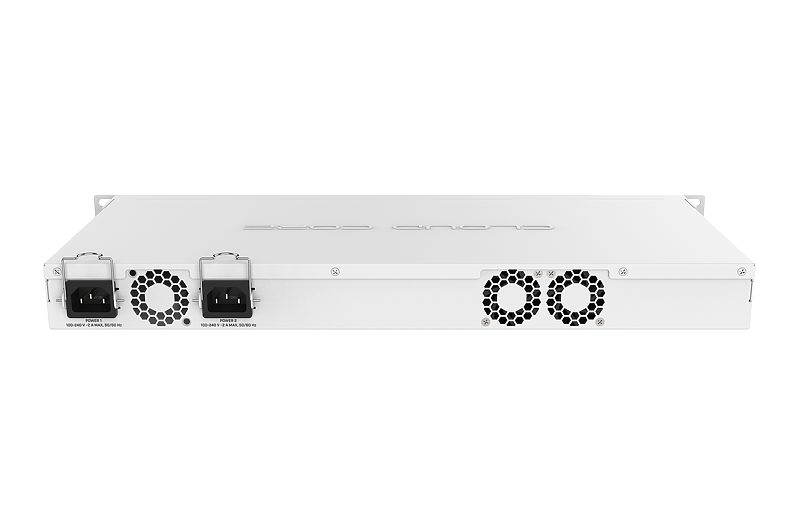

Comparing to the previous model, the new CCR1036 series has a full size USB port, redundant power supplies with improved design, RJ45 serial port and general improvements in durability, efficiency and reliability.
Additional Product Notes
- CPU: 36 cores TLR4-03680 1.2 GHz
- RAM: 4 GB
- Storage: NAND 1 GB
- Dimensions: 443 M.2 slots 1 PCIe x4
- M.2 slots: 1 PCIe x4
- Memory card slots: 1 microSD
- Serial ports: 1 RJ45
|Ethernet interface type||Ethernet LAN data rates||Flash memory||Internal memory||Ethernet LAN (RJ-45) ports||USB ports quantity||Compatible memory cards|
|Gigabit Ethernet||10,100,1000 Mbit/s||1024 MB||4096 MB||8||1||MS Micro (M2),MicroSD (TransFlash)|
